Plate Heat Exchangers

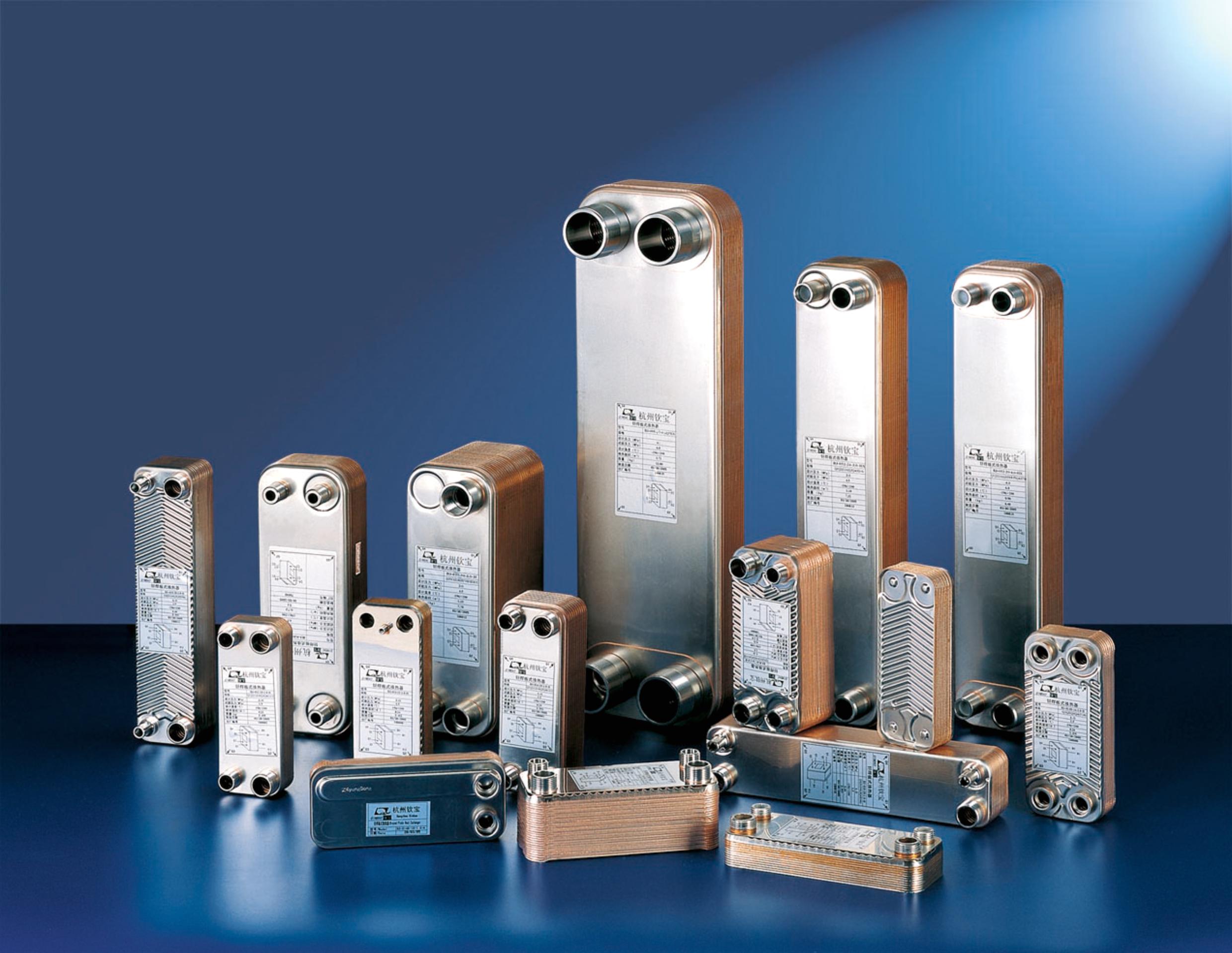

Brazed Plate Heat Exchangers (BPHE)

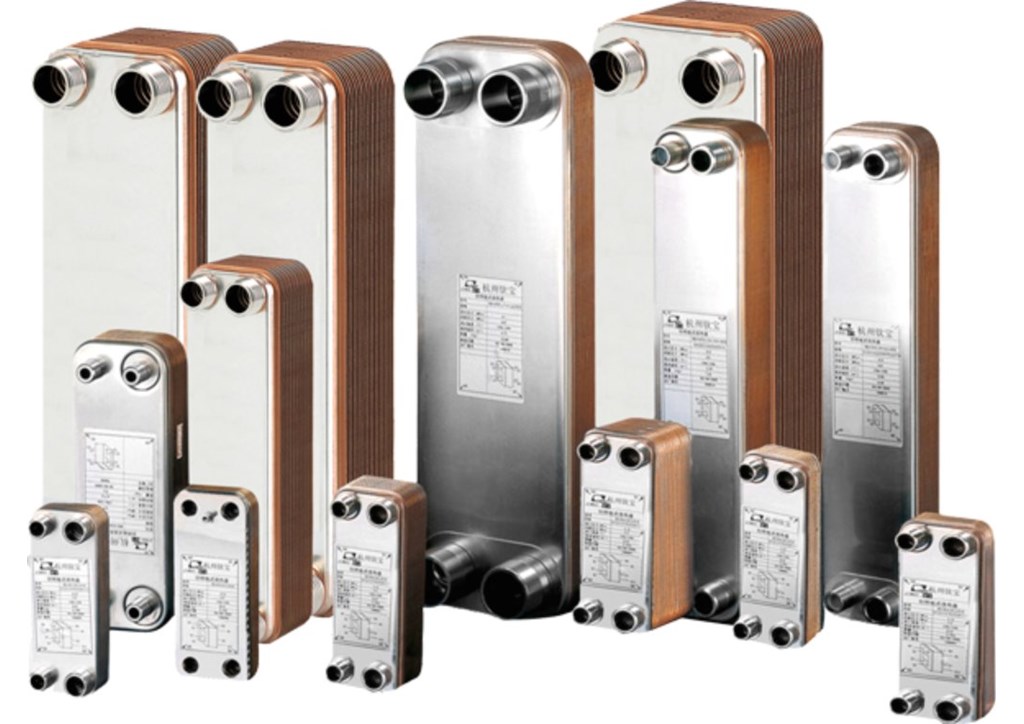

Micro Plate Heat Exchangers (MPHE)

  • Compact design
  • High efficiency
  • Connection in solder or flare
  • 100% inspected
  • MPHE gives up to 20% refrigerant savings as compared to a tradinal BPHE
  • MPHE is also more resiliant to impurities in the water as compared to BPHE
  • Capacities from 1TR to 30TR
  • Design Condition: with R22 SST: 2'c, SDT: 50'c, Tsh: 5K Tsc:5K Water in 12'c & Out 7'c

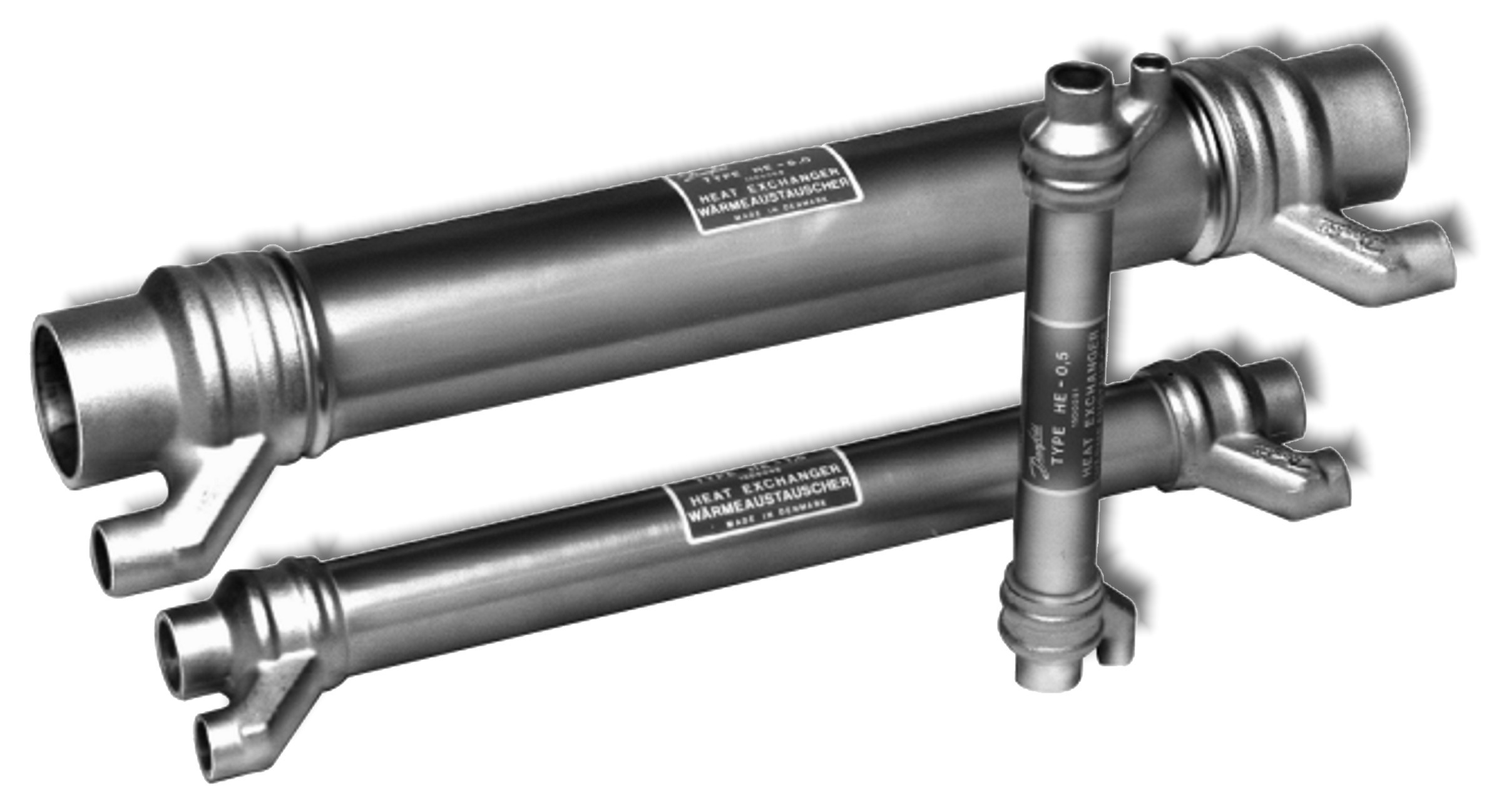

Tube-in-Tube Heat Exchangers, type HE

  • Tube-in-tube heat exchanger type HE is used primarily for heat transfer between the liquid and suction lines of the refrigeration plant
  • The purpose is to utilise the cooling effect, utilise which without a heat exchanger is otherwise lost to the ambient air via uninsulated suction lines
  • In the heat exchanger, this effect is used to subcool the refrigerant liquid
  • Helps ensure vapour-free liquid ahead of the expansion valve
  • Helps prevent sweating and frosted-up suction lines
