For Light Commercial and AC applications, Precision cooling

H series

Discharge check valve: no reverse rotation hence no shutdown noise.
Radial scroll compliance: Good resistance to liquid flood back.
Axial scroll compliance: low starting current.
Oil Injection: Good lubrication at fierce conditions
Lead-free bearings: high reliability even with low lubrication
Patended internal protection combined with HOOP(Hot oil over protector) thermal valve: excellent reliability standard dimensions and tubing: ideal for both new installations and replacement markets.
Cooling capacities from 5.95KW to 29.13KW (1.7TR to 8.3TR) with R22 @ARI 400/3/50Hz
Cooling capacities from 5.73KW to 28.15KW (1.6TR to 8TR) with R407c @ARI 400/3/50Hz
Cooling capacities from 7.1KW to 29.7KW (2TR to 8.5TR) with R410a @ARI 400/3/50Hz

SM series

Cooling capacities from 20.4KW to 45.5KW (5.8TR to 12.9TR) with R22 @ARI 400/3/50Hz
SM working range -20 to 15'c

SY series

Cooling capacities from 61.2KW to 94.5KW (17.4TR to 26.8TR) with R22 @ARI 400/3/50Hz
Cooling capacities from 59.1KW to 89.6KW (16.8TR to 25.5TR) with R407c @ARI 400/3/50Hz
Cooling capacities from 40.5KW to 63.3KW (11.5TR to 18TR) with R134a @ARI 400/3/50Hz
SY Working range: -20 to 15'c(R22), -20'c to 15'c(R407c), -15'c to 15'c(R134a)

SZ series

Cooling capacities from 19.3KW to 89.6KW (5.5TR to 25.5TR) with R407c @ARI 400/3/50Hz
Working range: -20'c to 15'c(R407c), -15'c to 15'c(R134a), -20'c to 10'c(R404a)

SH series

Cooling capacities from 22.3KW to 116.4KW (6.3TR to 33.1TR) with R410a @ARI 400/3/50Hz
Absolute leak-proof design through a new environmental friendly PTFE spring seal
Reduced sound level from discharge side and lower transmitted vibrations with intermediate cap design feature
Quieter and more efficient operation with “no contact – no wear” scroll design for reduced friction
Environmental friendly lead free bearings
Improved endurance and 100% motor cooling with patented motor cover design
Reduced operating noise and vibration with patented upper and lower centering spacers that eliminate misalignment

LLZ

working range -40 to -10'c
Cooling capacity from 2.4KW to 6.05KW with R404a @ -35'c/40'c/10K/0K
Cooling capacity with Economizer kit from 4.04KW to 9.91KW with R404a @ -35'c/40'c/10K/5K
Boost Cooling capacity and efficiency with vapor injection in low temperatures
Danfoss proposes the optional economizer kit to boost compressor efficiency and capacity with vapour injection.
The system uses a liquid subcooler circuit. During the liquid subcooler process, some liquid
Refrigerant evaporates in the economizer and is injected in to the scroll set at intermediate pressure.
This provides additional cooling capacity thanks to subcooling in the economizer and increase efficiency of the system.
The effect of vapor injection increases together with the increase of system pressure ratio.

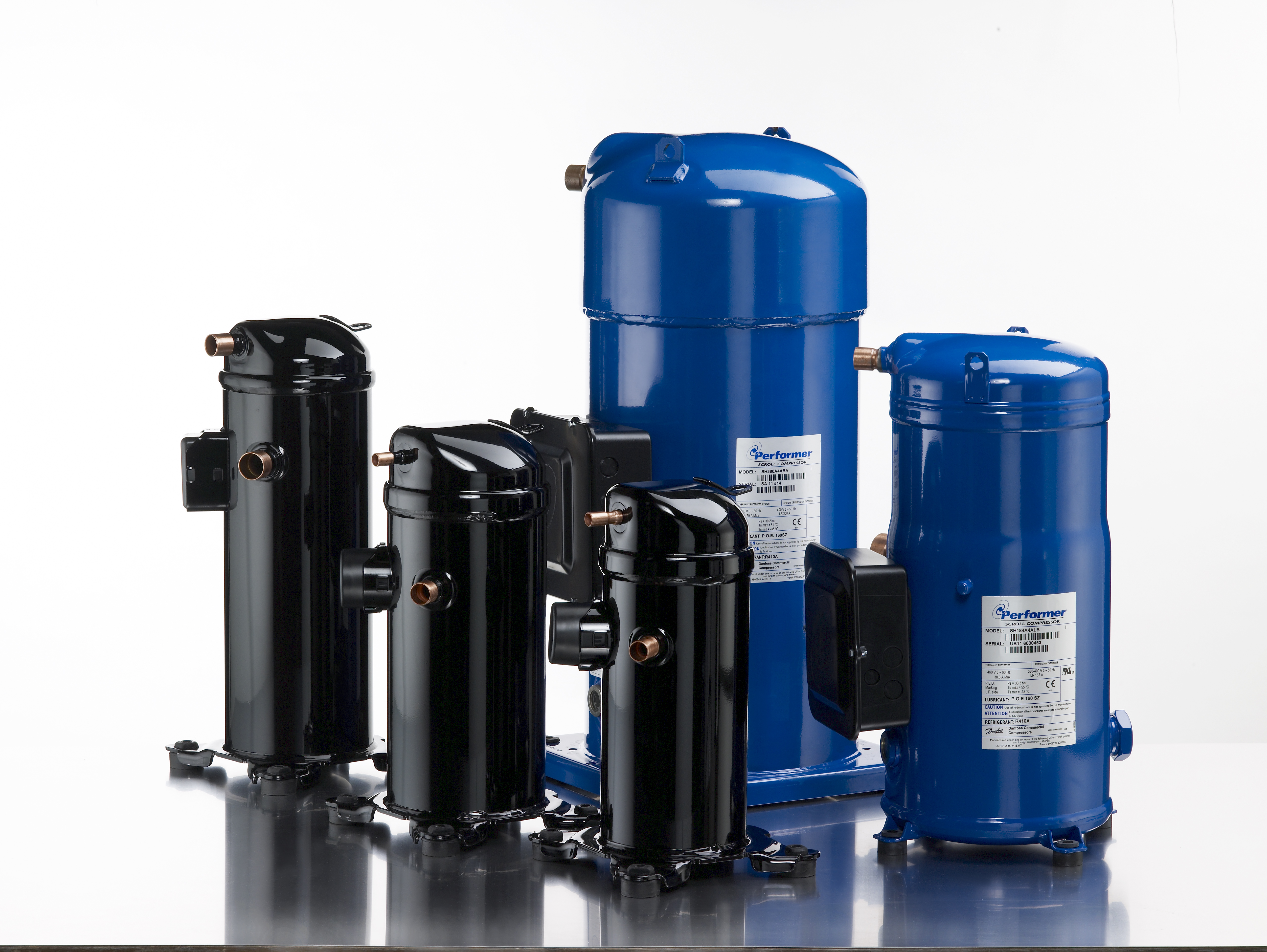

Danfoss Scroll Compressors
