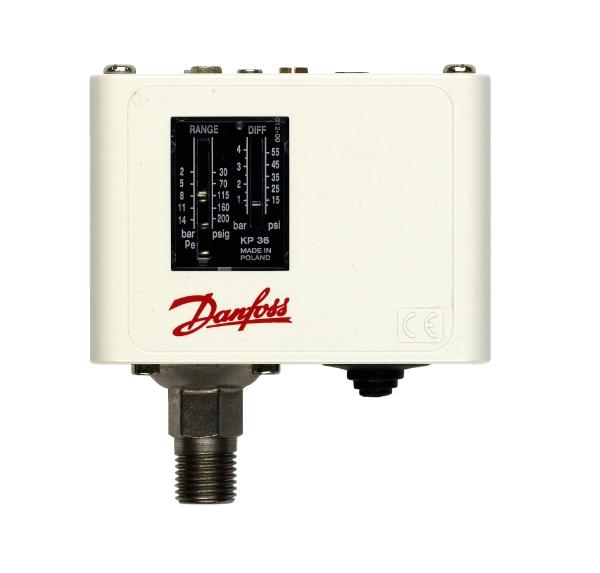

KP / KPI Pressure switches from -0.2bar to 28bar
- Adjustable Differential settings from 0.4bar to 6bar
- Enclosure IP30, IP44
- Wide setting range
- Small dimensions. Space saving – easy to install in panels

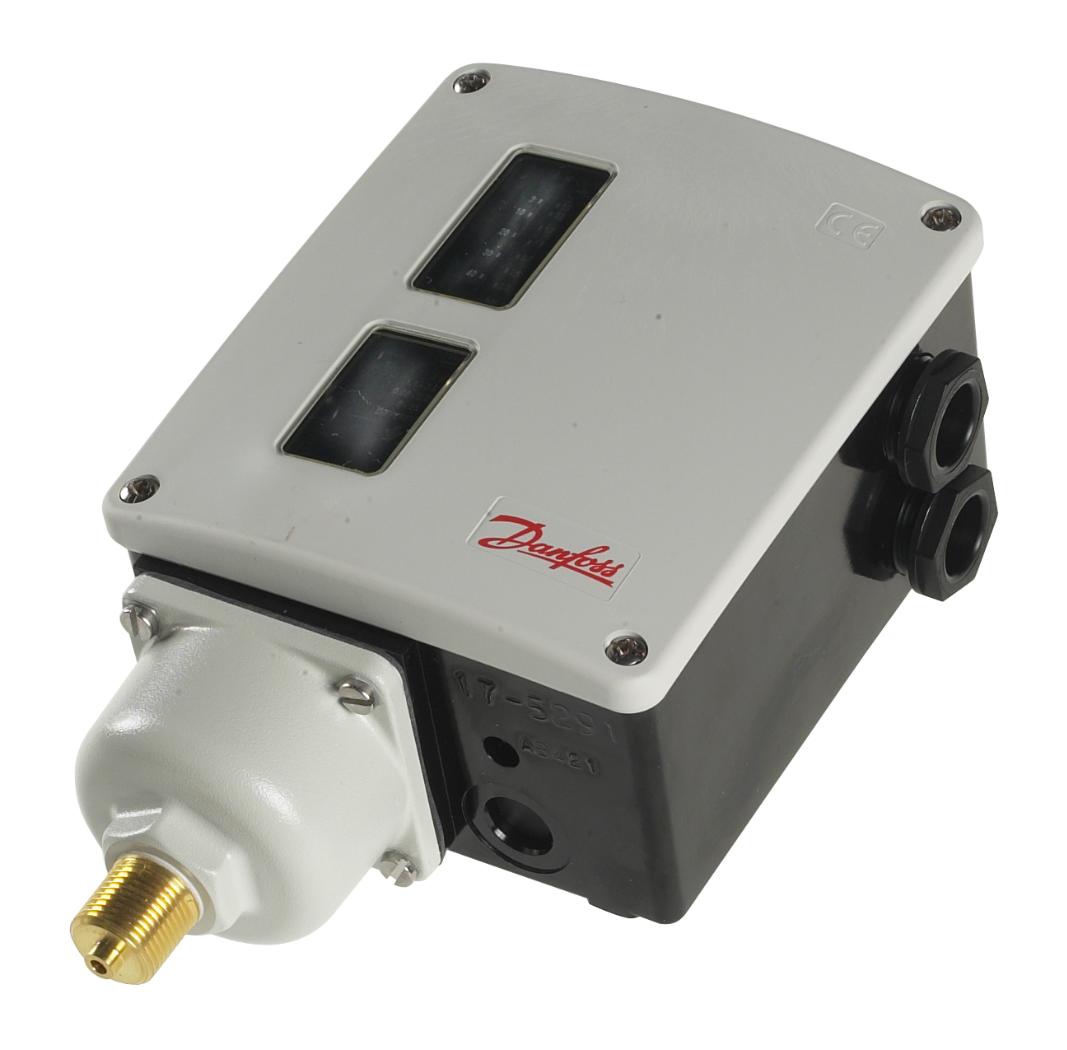

RT Pressure switches from -1bar to 30bar
- Adjustable Differential settings from 0.09bar to 4bar
- Enclosure IP66
- Long operation life time
- High accuracy, High repeatability
- Available with all major marine approvals
- Flame proof switches available

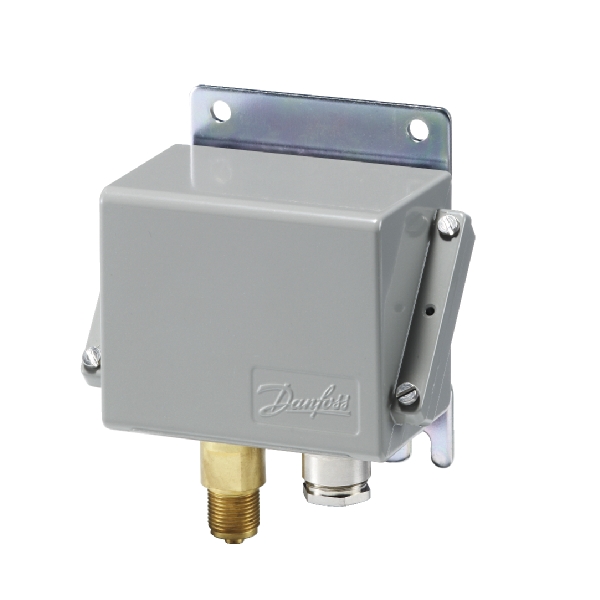

KPS Pressure switches from 0bar to 60bar
- A high level of enclosure IP67
- Adjustable differential
- Robust and compact construction
- Resistance to shock and vibration
- Available with all major marine approvals

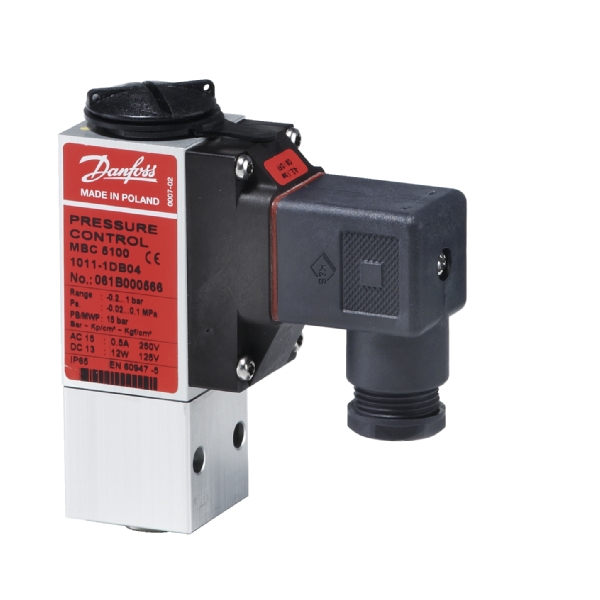

MBC compact Pressure switches from -0.2bar to 400bar
- Enclosure IP65. with all major ship approvals.
- High repeatability
- Applications: Can be used for pumps, compressors, hydraulic oil and general purpose applications
Temperature Switches

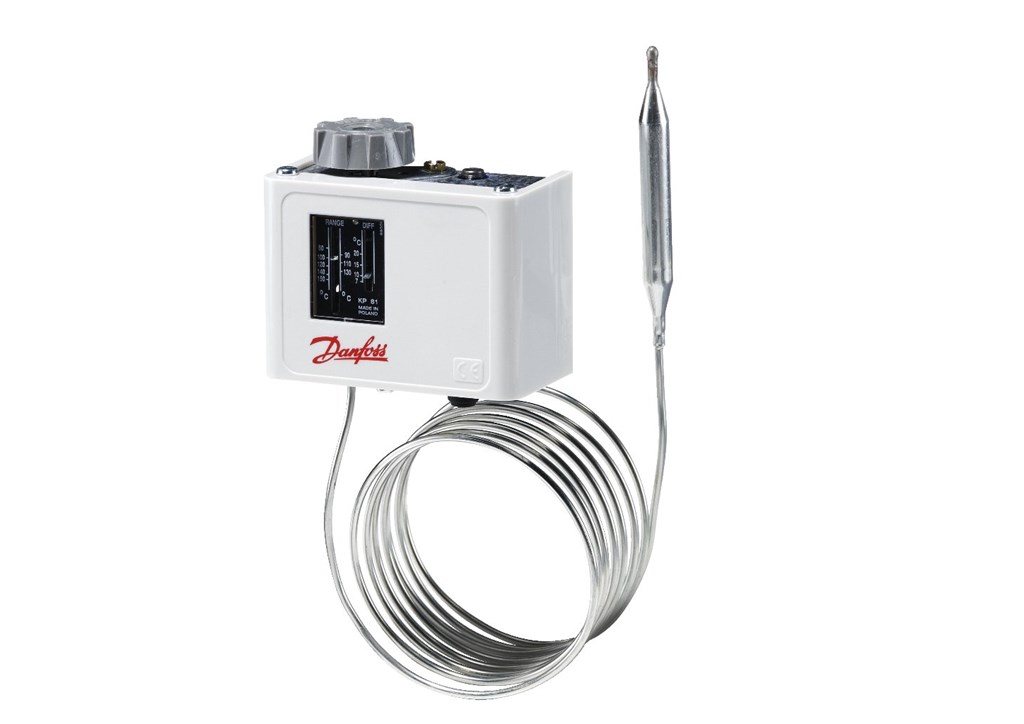

KP Temperature switches from 0'c to 150'c
- Enclosure IP30, IP44
- Adjustable differential setting

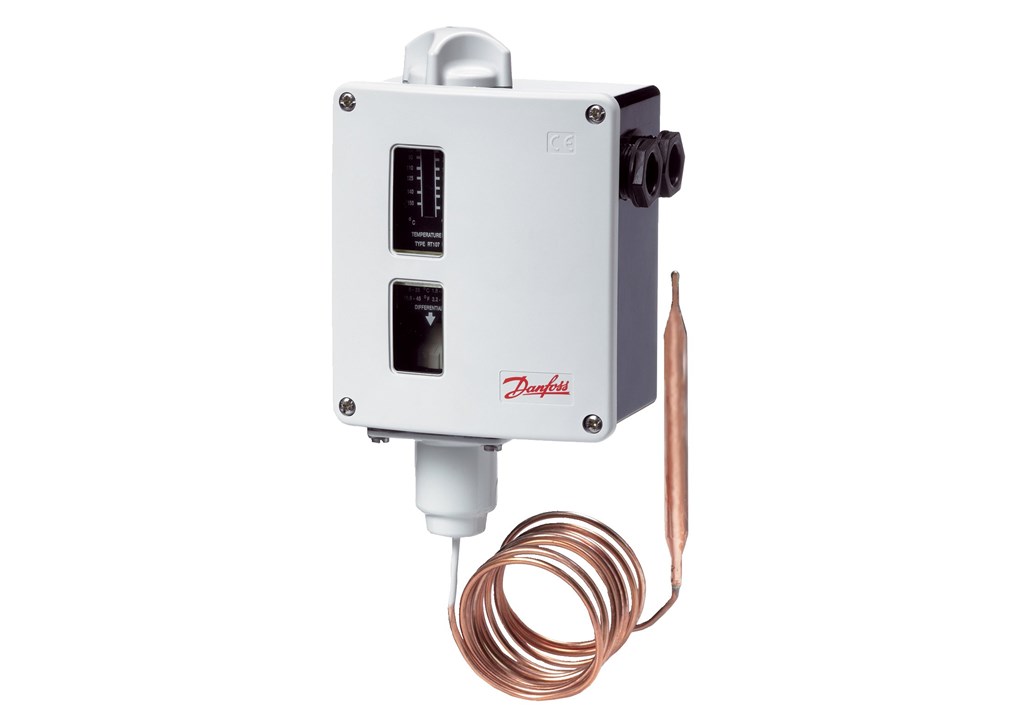

RT Temperature switches from 25'c to 300'c
- Enclosure IP66
- Adjustable differential setting
- Capaillary tube with 2m, 3m, 5m & 8m

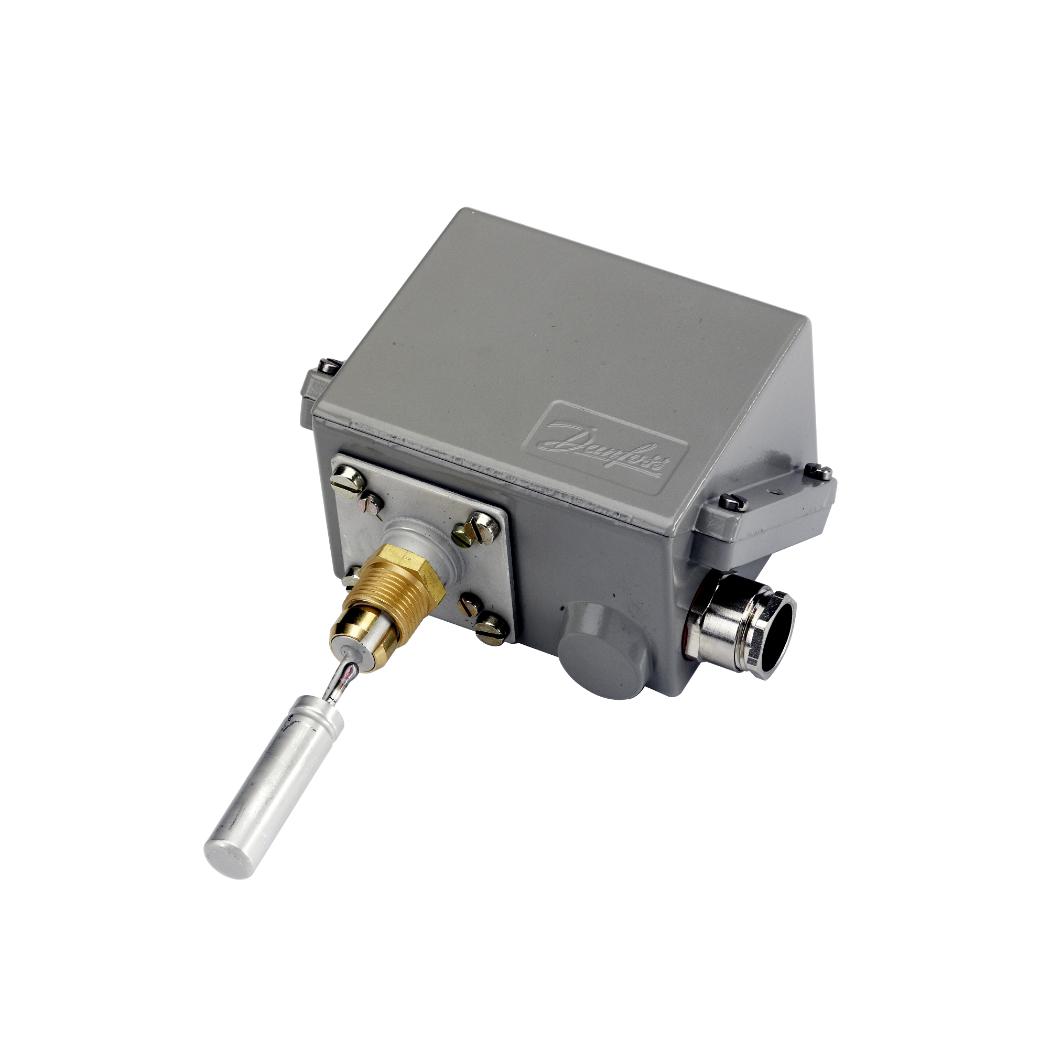

KPS Temperature switches from -10'c to 200'c
- Enclosure IP67
- Adjustable differential setting
- Capaillary (Armoured) tube with 2m, 3m, 5m & 8m & Rigid sensor
Differential Pressure Switches

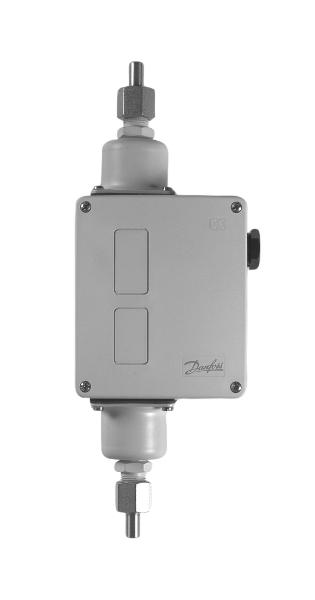

RT Differential Pressure switches from 0bar to 11bar
- Enclosure IP66
- Fixed differential setting

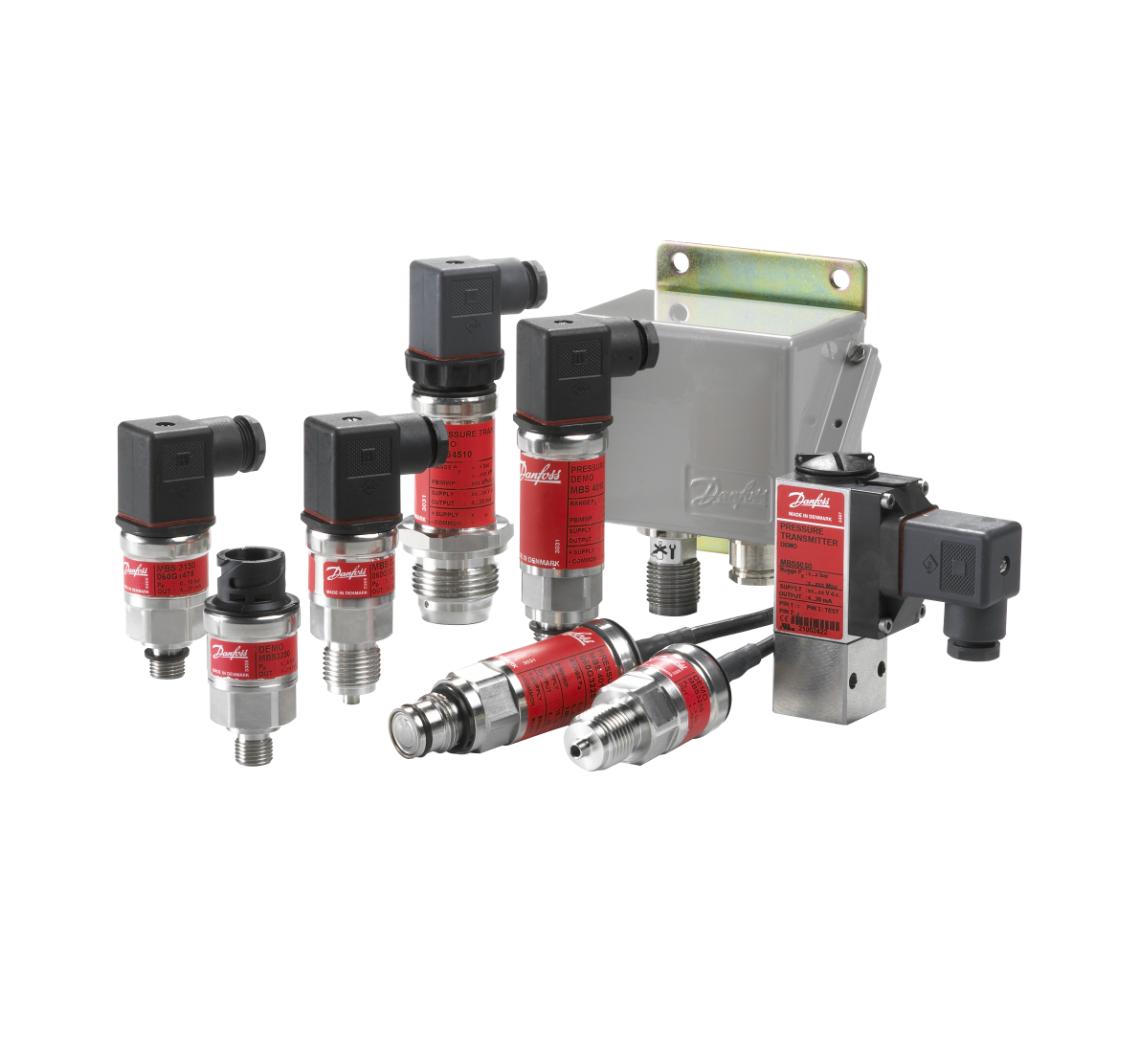

Pressure Transmitters
MBS3000
- Enslosure and wetted parts of acid-resistant stainless steel (AISI 316L)
- Pressure ranges in relative (gauge) or absolute from 0 up to 600 bar
- All standard output signals: 4 - 20 mA, 0 - 5 V, 1 - 5 V, 1 - 6 V, 0 - 10 V, 1 - 10 V
- A wide range of pressure and electrical connections
- Temperature compensated and laser calibrated
- Different Models available
- with up to 125'c
- with O/p 4 – 20 mA, absolute voltage, ratiometric output
- with Zero Point & Span adjustment
- with +/-0.3 to 1% Accuracy
- with High PT range 0-2200bar
- Versions with Ex Zone 0 approval available
- with Enclosure IP65 & IP67
- with High degree of EMC/EMI protection
- "Low Pressure ranges 40mbar to 250mbar as well as bidirectional (flexible zero point) e.g. -70 to 70 mbar or -20 to 80 mbar etc."
- The high accuracy flush diaphragm pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. Ranges from 0-0.25bar to 0-25bar ZP &SA with 4-20mA
- Applications: Water Pumps, Air Compressors, Powerpacks, Fuel treatment, Engines, Gear boxes, Propulsion systems, Boilers and general purpose applications
Versions also available with pulsesnubber. Resistant to cavitation, liquid hammer and pressure peaks
Temperature Sensors

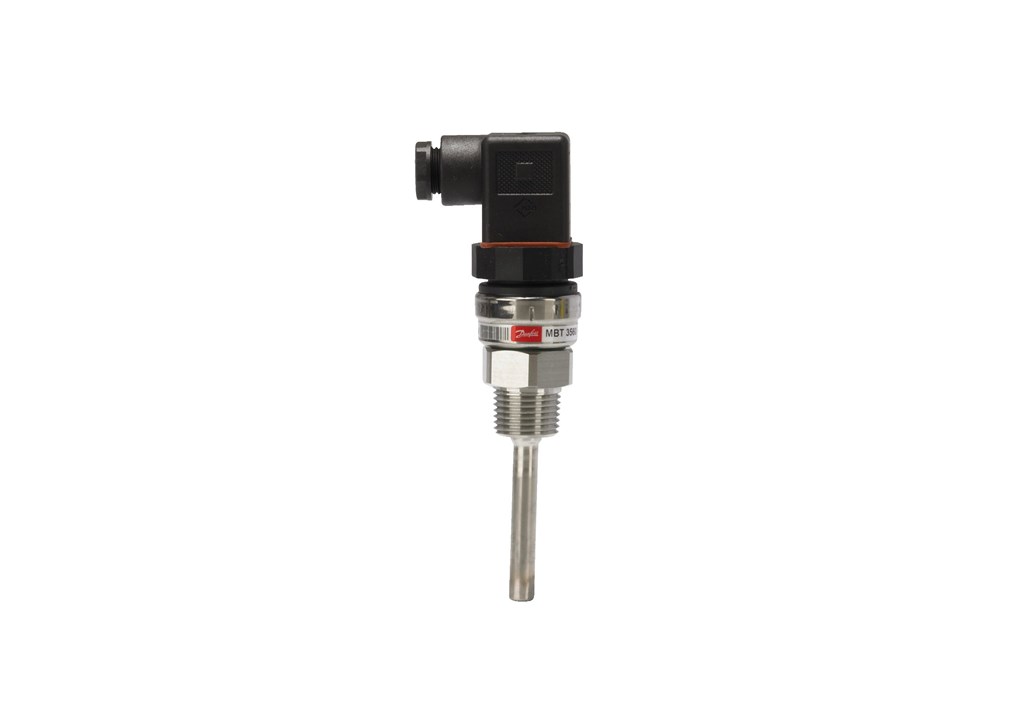

MBT3560
- Compact design with built-in 4-20mA transmitter
- Corrosion resistant stainless steel AISI 316 Ti sensor
- High vibration resistant
- Measuring range 0 to 200°C
- Insertion depth: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm & 395mm

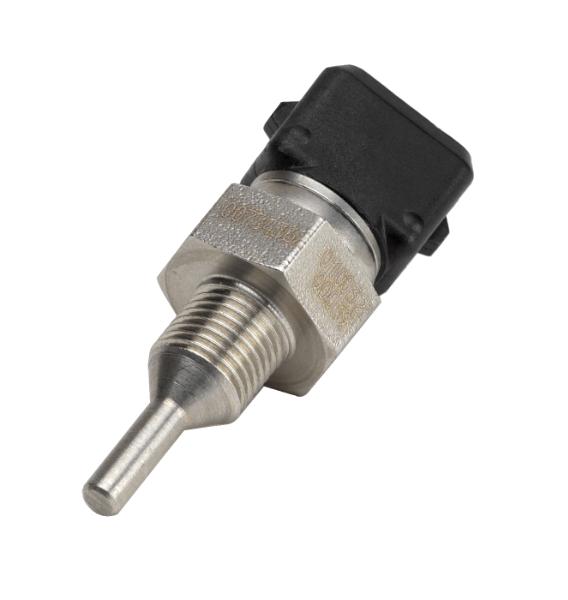

MBT3270
- Ultra compact construction
- High vibration resistant
- Also available with KTY sensing element
- Process connection G1/4A & M10x1
- Sensor element: KTY, Pt 100, Pt 1000, NTC/PTC
- Insertion depth: 24mm, 28mm, 32mm, 40mm, 50mm

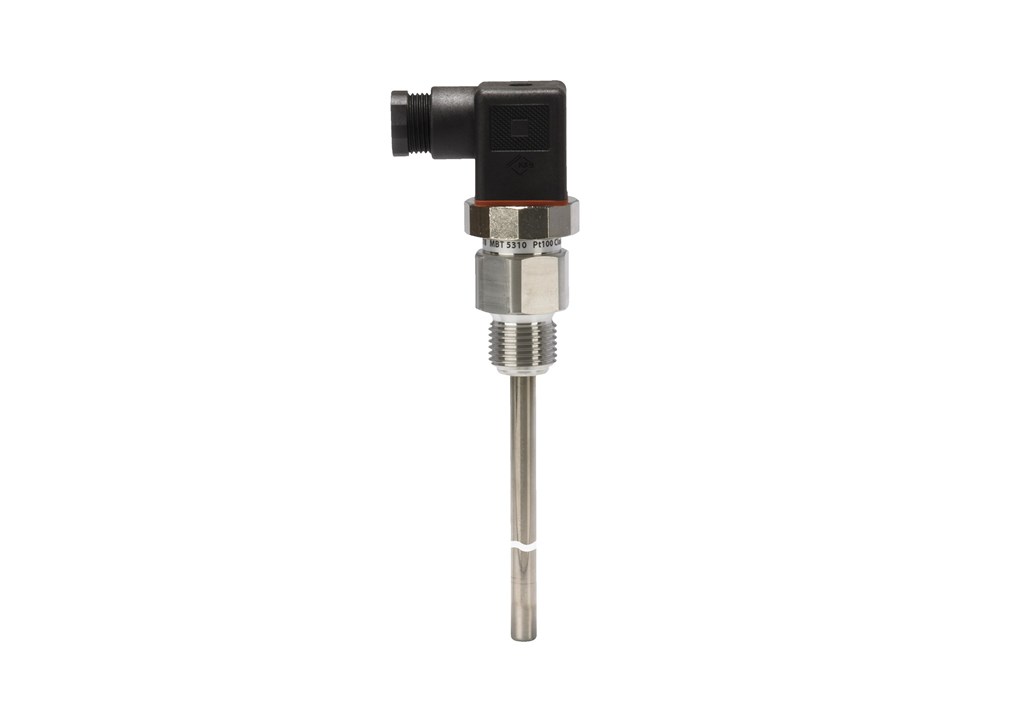

MBT5310
- For monitoring of bearing temperatures where there is risk of overheating, in applications such as Wind Turbines, Engines & Gear boxes
- Up to 200 °C
- Sensing element Pt 100 or Pt 1000
- Spring loaded to ensure excellent contact to bearing

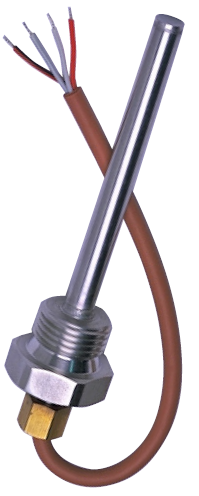

MBT153 with Sensor Pocket MBT120
- universal cable temperature sensor that can be used for controlling cooling water and ventilation systems within general industry applications.
- Temperature range -50 – 200 °C
- Short response times
- Pt 100 or Pt 1000 resistance element
- 2- or 4-wire connection
- MBT 120 sensor pocket available
- Sensor Pocket Insertion depth: 50mm, 100mm, 150mm, 200mm
- The sensor combined with the sensor pocket is named MBT5253.
Solenoid Valves

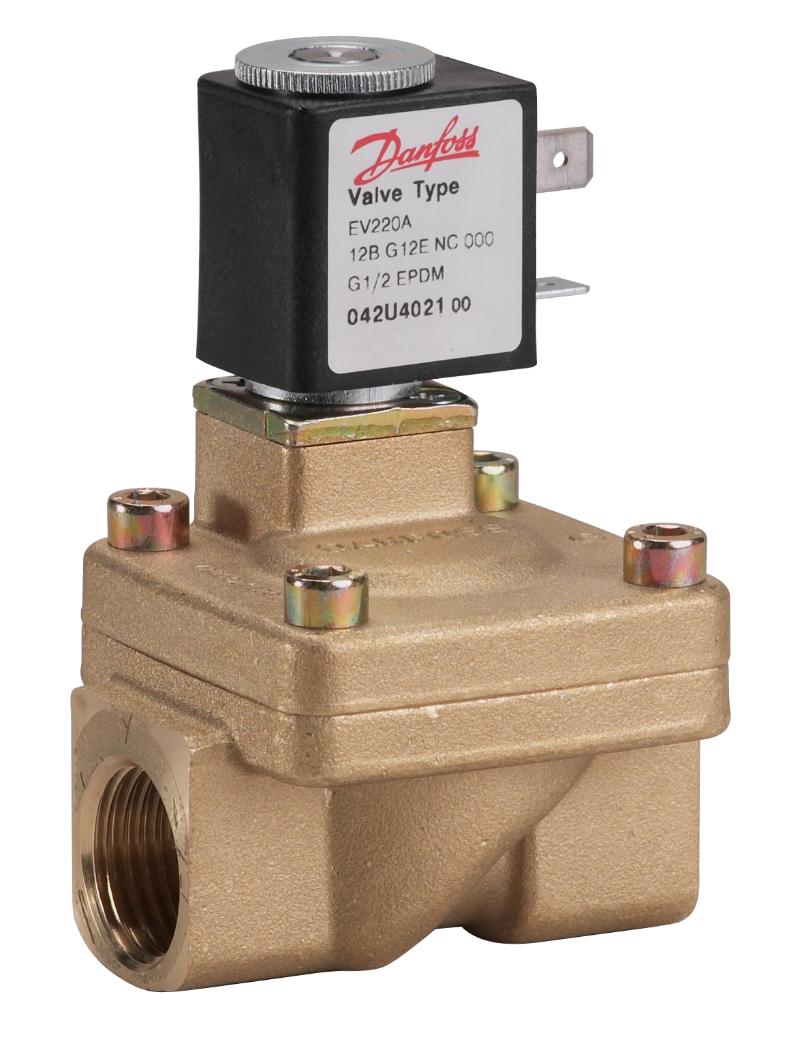

servo operated 2/2way solenoid valve, type EV220A
- Compact solenoid valve for robust industrial applications
- For water, oil, compressed air and similar neutral media
- NO version, standard for 1/4” to 1” valve sizes
- NC version, standard for 1/4” to 2” valve sizes
- Liquid hammer damped
- Low power consumption
- Differential pressure: 0.2 to 16 bar
- Viscosity: Up to 50 cSt
- Ambient temperatures: Up to +50°C
- Media temperatures: -30 to 100°C
- Enclosure: Up to IP 65
- Coil options with 230Vac / 24Vdc / 24Vac / 110Vac / 12Vdc

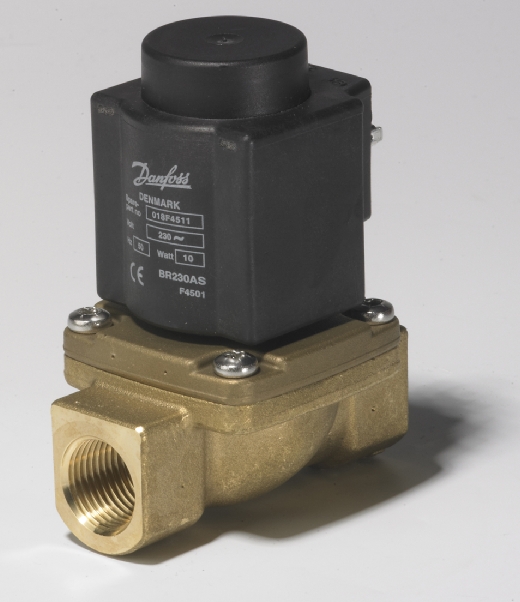

servo operated 2/2way solenoid valve for Steam, type EV225B
- The design is based on PTFE diaphragm concept, ensuring highly reliable function even in connection with contaminated steam.
- Specifically designed for steam applications, 160 °C or 185 °C
- Flow range: 0.9 – 6.0 m3/h
- Differential pressure: 0.2 – 10 bar
- Media temperature from 0 – 185 °C
- Ambient temperature: up to 40 °C
- Coil enclosure: up to IP65
- Thread connections: from G 1/4 to G 1 ISO 228/1. Only NC versions
- "Valve body in dezincification resistant brass and valve seats made in stainless steel for ensuring a long life even in connection with aggressive steam media."
- Coil options with 230Vac / 24Vac / 110Vac

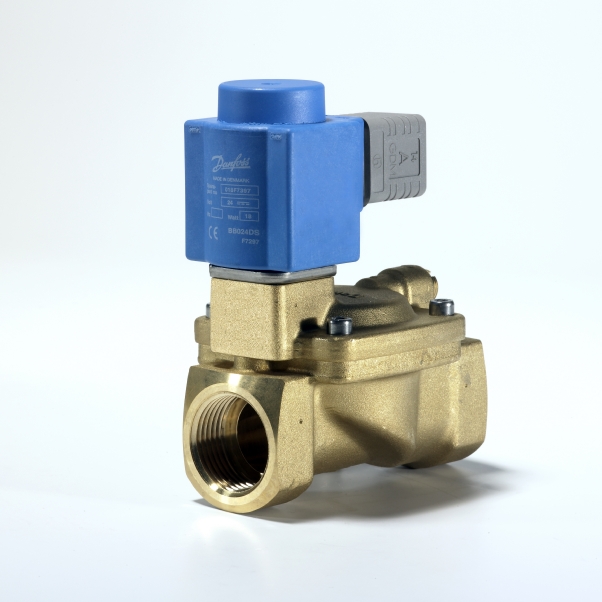

servo operated 2/2way solenoid valve, type EV220B
- Compact solenoid valve for robust industrial applications
- For water, oil, compressed air and similar neutral media
- G1/4 – G1 connection ISO228/1
- Flow range from 0.2 – 19 m³/h
- Differential pressure from 0.1 – 30 bar
- Media temperature from -30 – 100 °C
- Ambient temperature: Up to 80 °C
- Coil enclosure: Up to IP67
- Thread connections: From G ¼ – G 1
- Viscosity: Up to 50 cSt
- Brass version NC and NO
- DZR brass version NC
- FKM and EPDM
- Also available with NPT thread
- For water, steam, oil, compressed air and gases
- Flow range for water: 1.3 – 160 m³/h
- Differential pressure: 0.3 – 16 bar
- Media temperature from -30 – 140 °C
- Ambient temperature: Up to 80 °C
- Coil enclosure: Up to IP67
- Thread connections: From G ½ – G 2
- Viscosity: Up to 50 cSt
- Water hammer damped
- Built in filter for protection of pilot system
- Adjustable closing time available
- EV220B NC and NO brass version for neutral liquids and gasses
- EV220BD NC DZR version for neutral and slightly aggressive liquids and gases
- EV220BSS NC Stainless steel version for neutral and aggressive liquids and gases
- Also available with NPT thread.
- use in robust industrial applications, demanding high flow rates.
- The valve is designed with cast iron valve body and flanged connection.
- For water and similar neutral media
- Flow range for water: 25 – 400 m³/h
- Ambient temperature: Up to 80 °C
- Differential pressure: Up to 10 bar
- Viscosity: Up to 50 cSt
- Coil enclosure: Up to IP67
- Flange connections: 2 1/2, 3 and 4”
- Water hammer damped
- Built-in filter for protection of pilot system
- Seal material: EPDM and NBR
EV220B 6-22
EV220B 15-50
EV220B 65-100

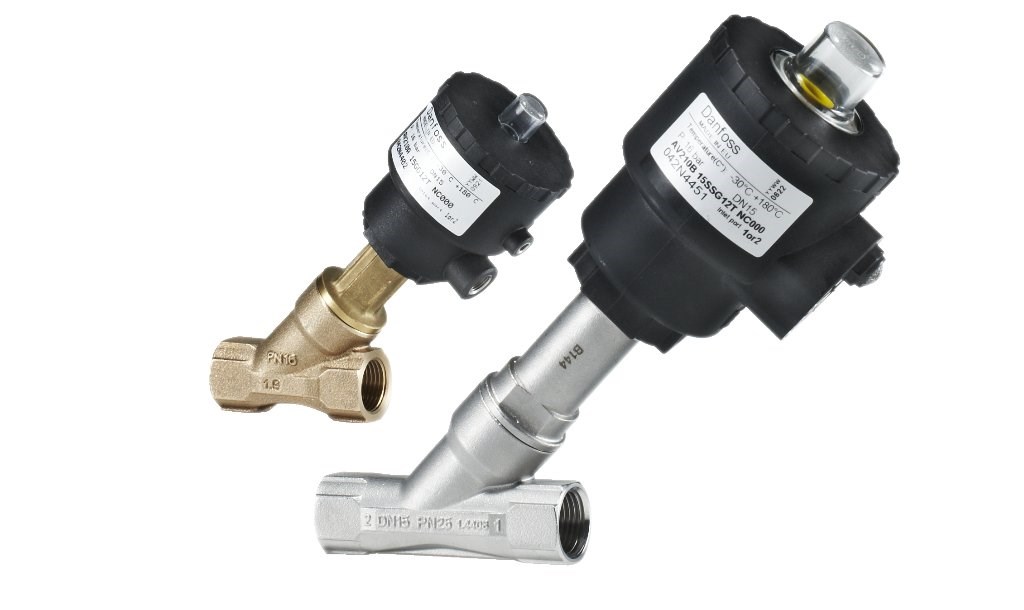

Externally-operated valves, type AV210 (Angle Seat valves)
- AV210 is an externally operated valve can operate at very high medium temperatures and viscosities, and is insensitive to dirt particles in the medium; thus, it is often called a “troubleshooter” valve.
- For all fluids and gases
- Flow range: 0 – 234 m3/h
- Differential pressure: 0 – 16 bar
- Medium temperature: -30 – 180 °C
- Ambient temperature: -30 – 60 °C
- Thread connection: G 3⁄8 – G 2 in (NC and NO)
- Orifice size: DN 15 – 50 mm
- Unpressurized closed (NC) bidirectional versions
- unpressurized opened (NO) version closing against the flow direction
- NC version: bi-directional, closing against or closing with the flow direction
- NO version: always closing against the flow direction
Thermostatically operated valves, type AVTA
- "Thermo. operated water valves are used for proportional regulation of flow quantity, depending on the setting and the sensor temperature."
- Insensitive to dirt & Insensitive to water pressure
- Self-acting – no power needed
- Opens on rising sensor temperature
- Differential pressure 0 – 10 bar
- Cooling Media temperature -25 to 130 °C
- Thread connection G 3⁄8 – G 1
- The valves are pressure-relieved, i.e. the degree
- The regulation range is defined for the point at which the valve begins to open.
